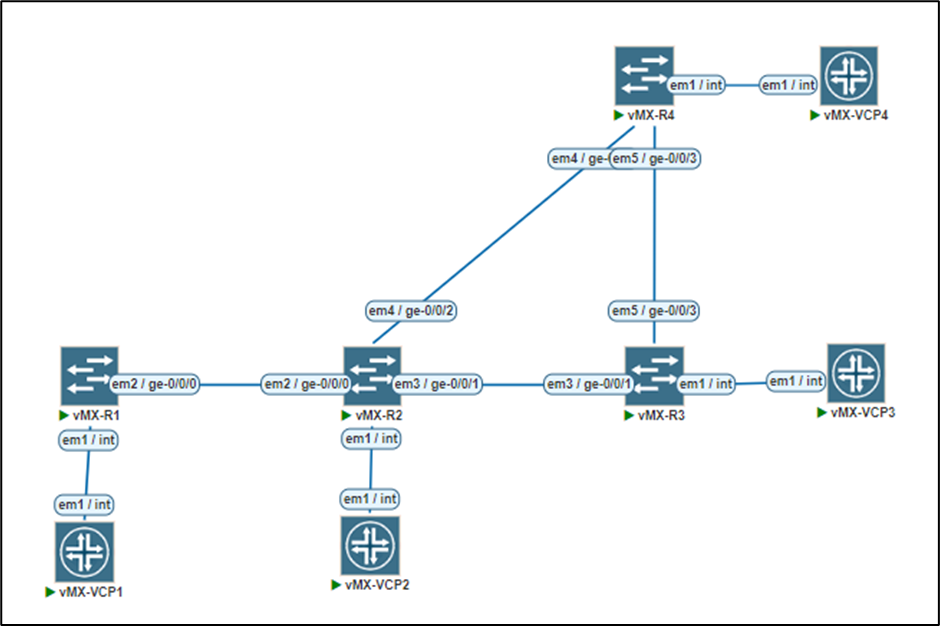

| R1: set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/30 set interfaces lo0 unit 0 family inet address 1.1.1.1/32 |
| R2: set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.2/30 set interfaces ge-0/0/1 unit 0 family inet address 10.2.2.1/30 set interfaces ge-0/0/2 unit 0 family inet address 10.3.3.1/30 set interfaces lo0 unit 0 family inet address 2.2.2.2/32 |
| R3: set interfaces ge-0/0/1 unit 0 family inet address 10.2.2.2/30 set interfaces ge-0/0/3 unit 0 family inet address 10.4.4.1/30 set interfaces lo0 unit 0 family inet address 3.3.3.3/32 |
| R4: set interfaces ge-0/0/2 unit 0 family inet address 10.3.3.2/30 set interfaces ge-0/0/3 unit 0 family inet address 10.4.4.2/30 set interfaces lo0 unit 0 family inet address 4.4.4.4/32 |

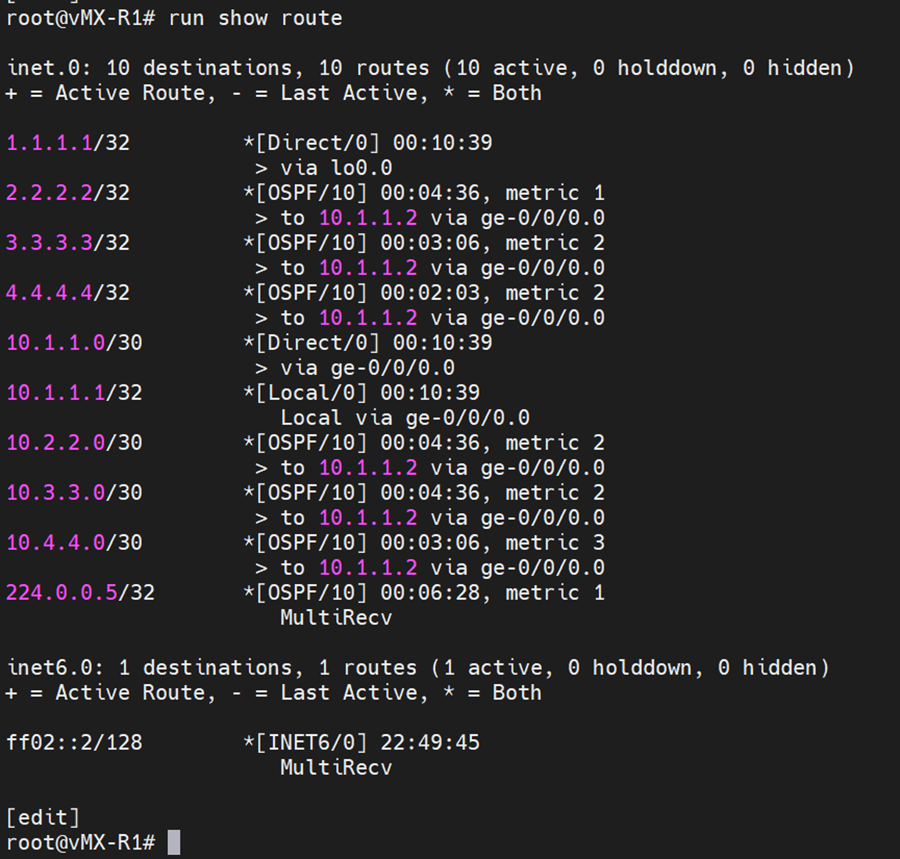

| R1: [edit] root@R1# set protocols ospf area 0.0.0.1 interface ge-0/0/0.0 [edit] root@R1# set protocols ospf area 0.0.0.1 interface lo0.0 |
| R2: [edit] root@R2# set protocols ospf area 0.0.0.1 interface ge-0/0/0.0 [edit] root@R2# set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 [edit] root@R2# set protocols ospf area 0.0.0.0 interface ge-0/0/2.0 [edit] root@R2# set protocols ospf area 0.0.0.0 interface lo0.0 |
| R3: [edit] root@R3# set protocols ospf area 0.0.0.0 interface ge-0/0/1.0 [edit] root@R3# set protocols ospf area 0.0.0.0 interface ge-0/0/3.0 [edit] root@R3# set protocols ospf area 0.0.0.0 interface lo0.0 |
| R4: [edit] root@R4# set protocols ospf area 0.0.0.0 interface ge-0/0/2.0 [edit] root@R4# set protocols ospf area 0.0.0.0 interface ge-0/0/3.0 [edit] root@R4# set protocols ospf area 0.0.0.0 interface lo0.0 |
