[Juniper#008] OSPF Basic 설정

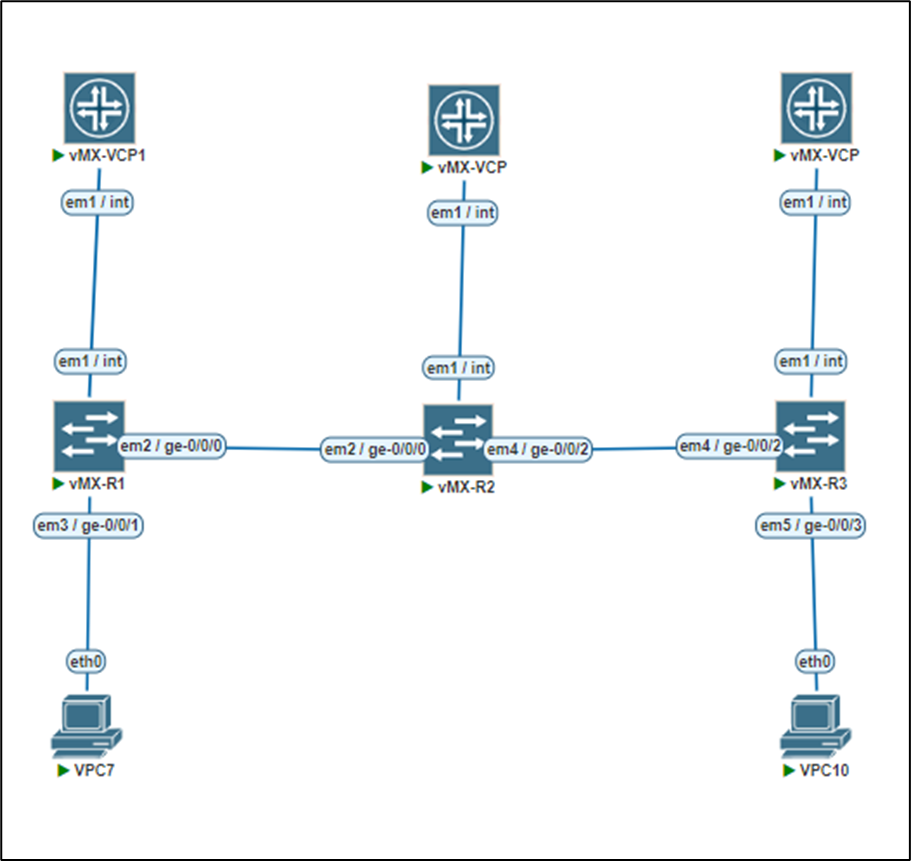

[인터페이스설정]

R1:

set interfaces ge-0/0/0 unit 0 family inet address 1.1.1.1/30

set interfaces ge-0/0/1 unit 0 family inet address 10.1.1.1/24

R2:

set interfaces ge-0/0/0 unit 0 family inet address 1.1.1.2/30

set interfaces ge-0/0/2 unit 0 family inet address 2.2.2.1/30

R3:

set interfaces ge-0/0/2 unit 0 family inet address 2.2.2.2/30

set interfaces ge-0/0/3 unit 0 family inet address 172.16.0.1/30

PC:

VPC7: 10.1.1.10/24

VPC10: 172.16.0.10/24

[OSPF설정]

R1:

set protocols ospf area 0.0.0.0 interface ge-0/0/0.0

set protocols ospf area 0.0.0.0 interface ge-0/0/1.0

R2:

set protocols ospf area 0.0.0.0 interface ge-0/0/0.0

set protocols ospf area 0.0.0.0 interface ge-0/0/2.0

R3:

set protocols ospf area 0.0.0.0 interface ge-0/0/2.0

set protocols ospf area 0.0.0.0 interface ge-0/0/3.0

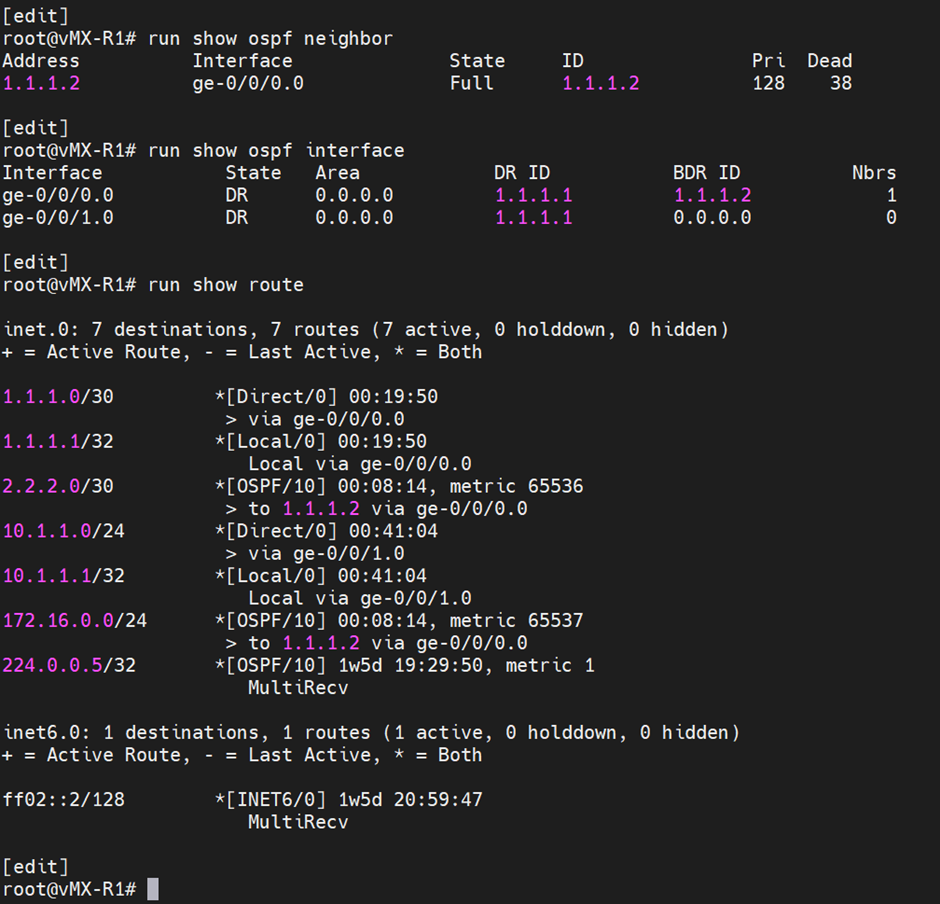

[OPSF 확인-vMX-R1]

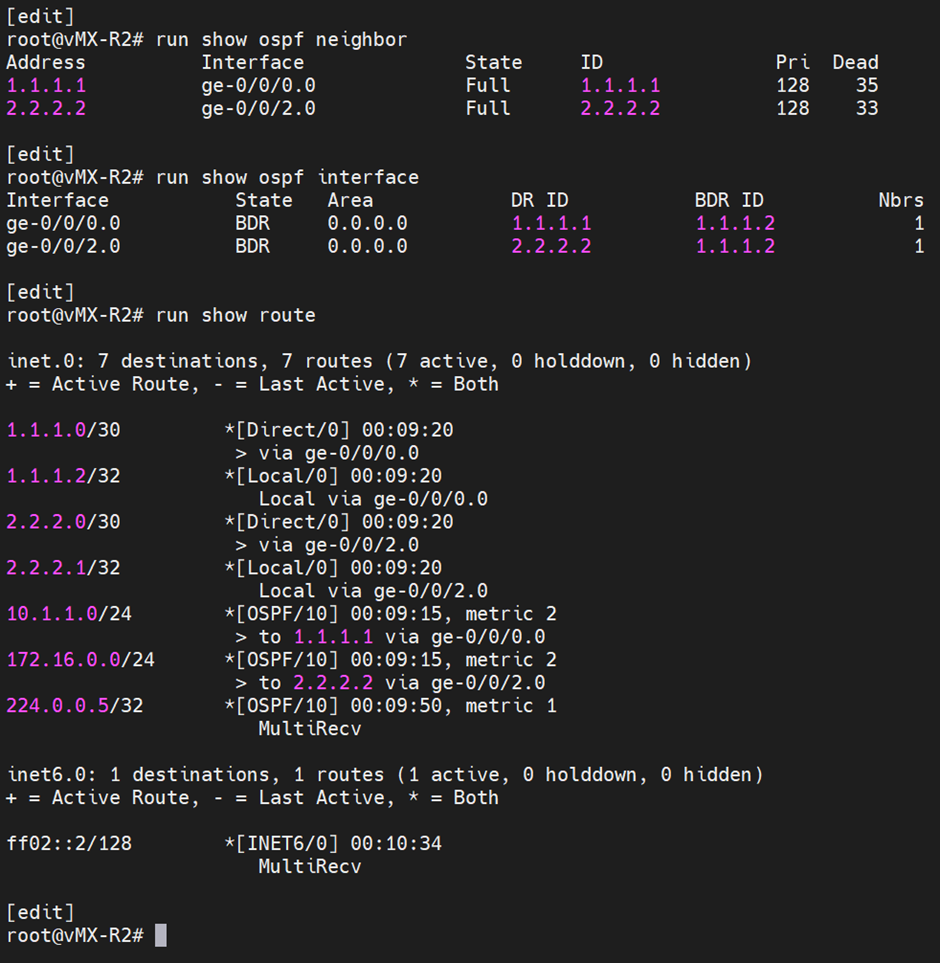

[OPSF 확인-vMX-R2]

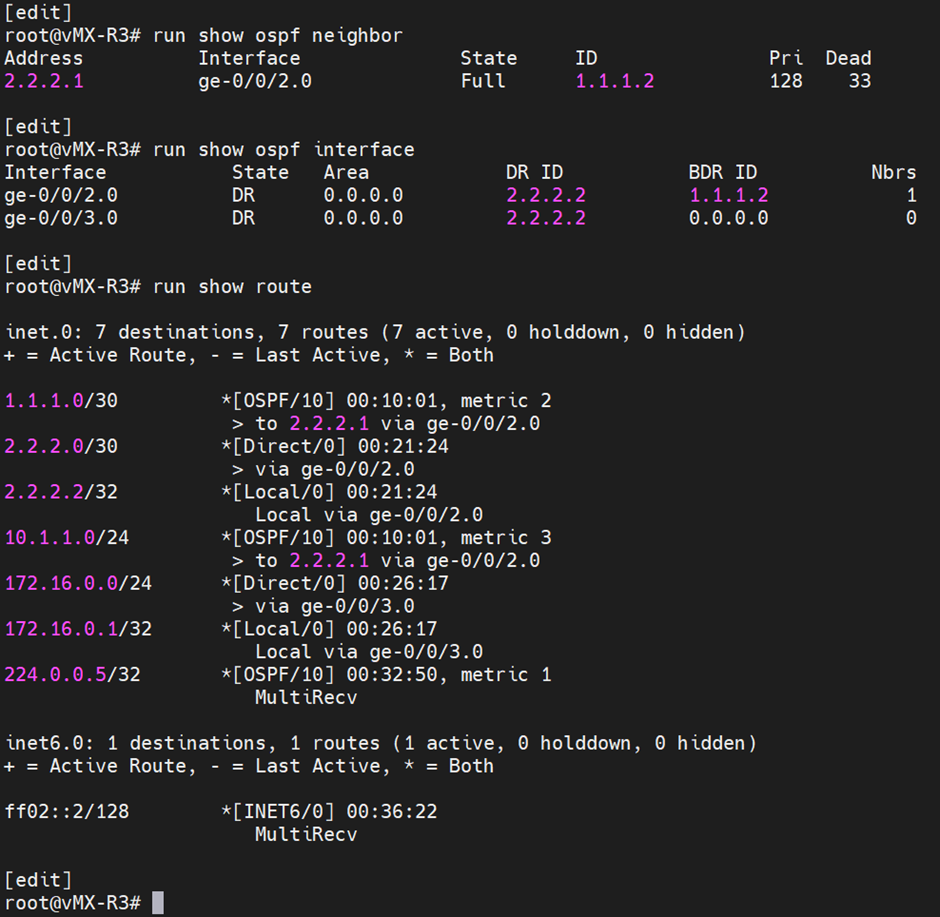

[OPSF 확인-vMX-R3]

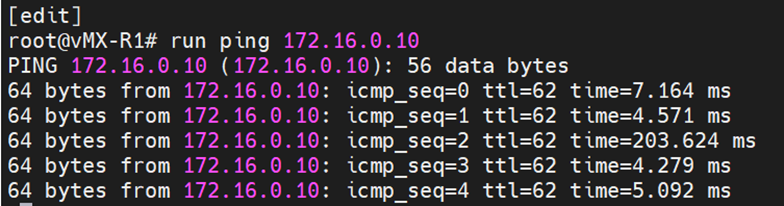

[PING TEST : vMX-R1 -> VPC10]
