[Juniper#004] VLAN 설정 및 RVI 설정

[시나리오]

ge-0/0/0 to ge-0/0/5까지 range를 적용하여 vlan을 할당하고 SVI를 설정하여라.



set vlans vlan10 vlan-id 10

set interfaces ge-0/0/0 unit 0 family ethernet-switching vlan members vlan10

set interfaces vlan unit 0 family inet address 192.168.10.1/24

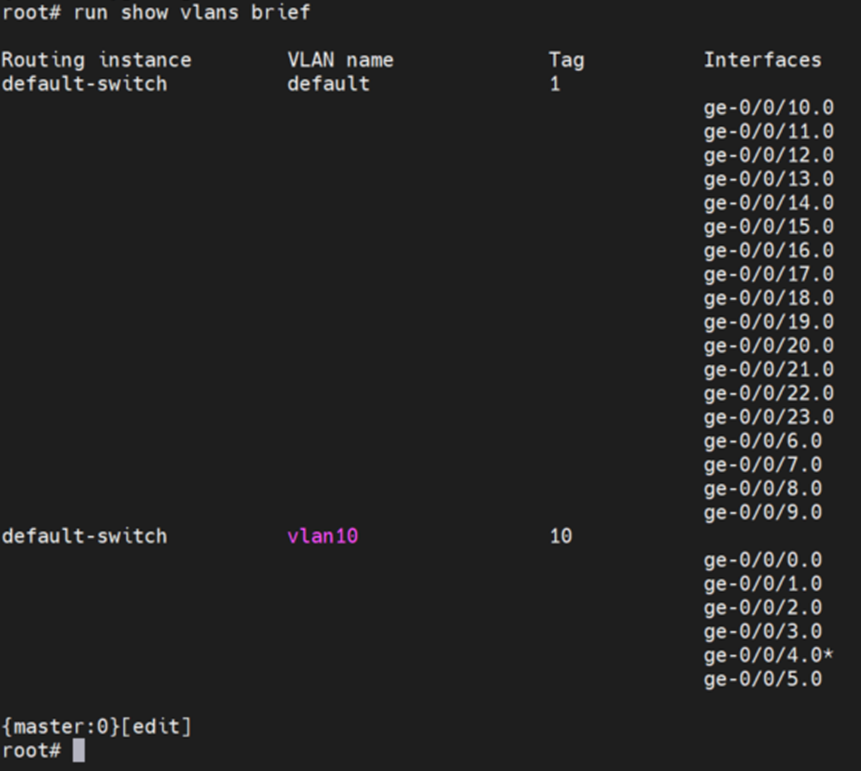

set interfaces interface-range range10 member-range ge-0/0/0 to ge-0/0/5

set interfaces interface-range range10 unit 0 family ethernet-switching vlan members vlan10

// 그룹 인터페이스에 vlan 설정하는법

set interfaces ge-0/0/0 unit 0 family ethernet-switching vlan members vlan10

// 단일 인터페이스에 vlan 설정하는법

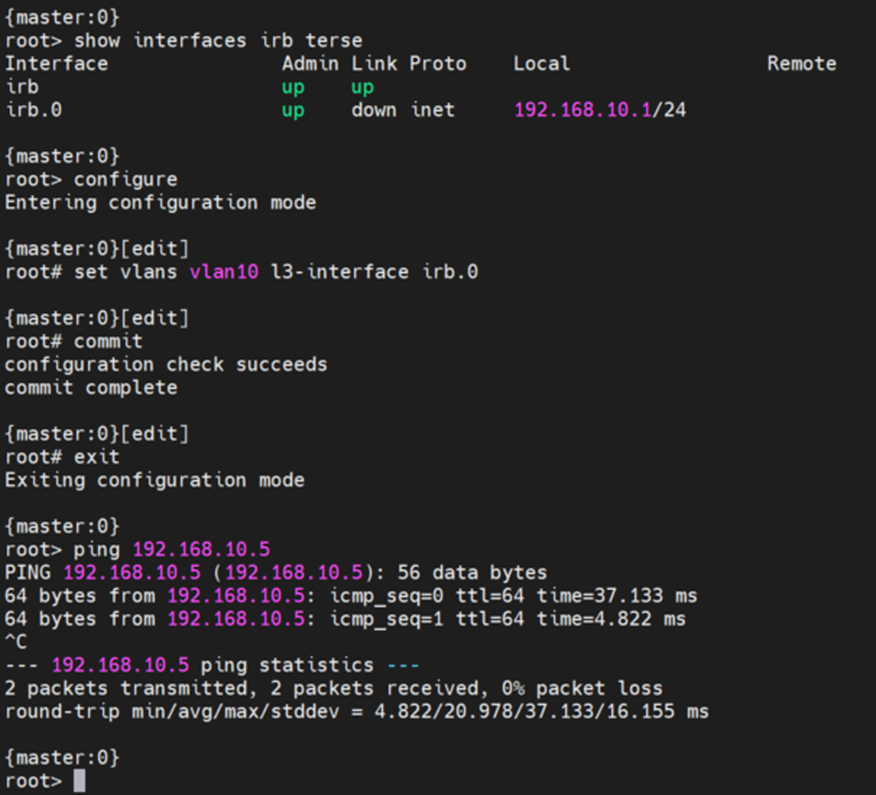

set interfaces irb unit 0 family inet address 192.168.10.1/24

set vlan vlan10 l3-interface irb.0  // irb를 VLAN과 매핑. – SVI 설정
