[Juniper#009] OSPF Multi-Area Basic 설정

Juniper Networks (Junior)

[Juniper#009] OSPF Multi-Area Basic 설정

Lewis Joo 2023. 6. 21. 12:31

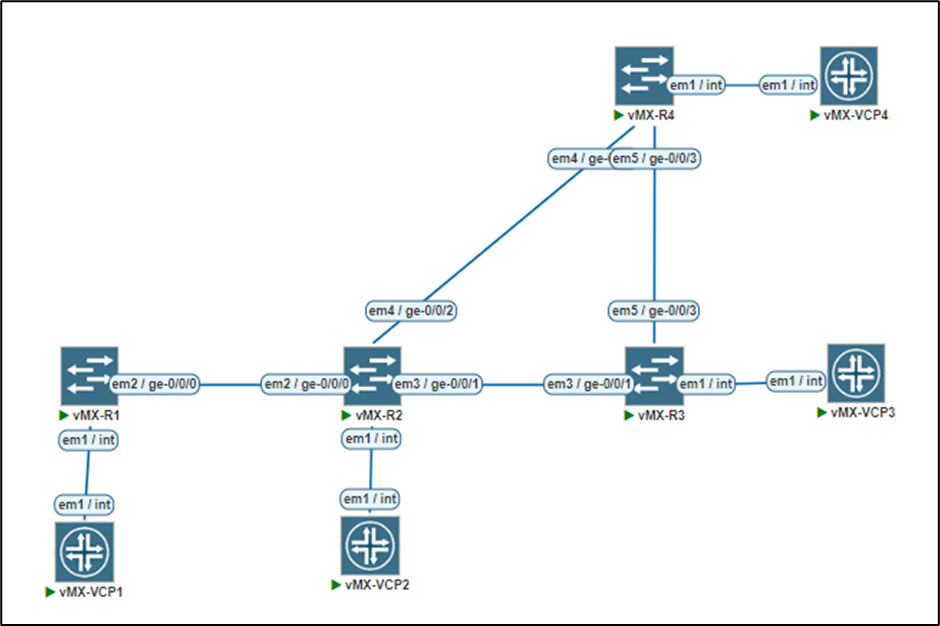

R1:
set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/30
set interfaces lo0 unit 0 family inet address 1.1.1.1/32

R2:
set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.2/30
set interfaces ge-0/0/1 unit 0 family inet address 10.2.2.1/30
set interfaces ge-0/0/2 unit 0 family inet address 10.3.3.1/30
set interfaces lo0 unit 0 family inet address 2.2.2.2/32

R3:
set interfaces ge-0/0/1 unit 0 family inet address 10.2.2.2/30
set interfaces ge-0/0/3 unit 0 family inet address 10.4.4.1/30
set interfaces lo0 unit 0 family inet address 3.3.3.3/32

R4:
set interfaces ge-0/0/2 unit 0 family inet address 10.3.3.2/30
set interfaces ge-0/0/3 unit 0 family inet address 10.4.4.2/30
set interfaces lo0 unit 0 family inet address 4.4.4.4/32

R1:
[edit]
root@R1# set protocols ospf area 0.0.0.1 interface ge-0/0/0.0
[edit]
root@R1# set protocols ospf area 0.0.0.1 interface lo0.0

R2:
[edit]
root@R2# set protocols ospf area 0.0.0.1 interface ge-0/0/0.0
[edit]
root@R2# set protocols ospf area 0.0.0.0 interface ge-0/0/1.0
[edit]
root@R2# set protocols ospf area 0.0.0.0 interface ge-0/0/2.0
[edit]
root@R2# set protocols ospf area 0.0.0.0 interface lo0.0

R3:
[edit]
root@R3# set protocols ospf area 0.0.0.0 interface ge-0/0/1.0
[edit]
root@R3# set protocols ospf area 0.0.0.0 interface ge-0/0/3.0
[edit]
root@R3# set protocols ospf area 0.0.0.0 interface lo0.0

R4:
[edit]
root@R4# set protocols ospf area 0.0.0.0 interface ge-0/0/2.0
[edit]
root@R4# set protocols ospf area 0.0.0.0 interface ge-0/0/3.0
[edit]
root@R4# set protocols ospf area 0.0.0.0 interface lo0.0
