[Juniper#007] VRRPv2 설정

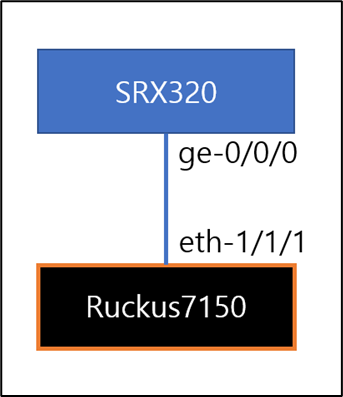

주니퍼 방화벽 설정(SRX320) – ge-0/0/0 IP : 192.168.20.11

#set interfaces ge-0/0/0 unit 0 family inet address 192.168.20.11/24 vrrp-group 1 virtual-address 192.168.20.254 #set interfaces ge-0/0/0 unit 0 family inet address 192.168.20.11/24 vrrp-group 1 priority 200 ##set security zones security-zone trust interfaces ge-0/0/0 // 안치면 SRX에서 핑 안나감

루커스 스위치 설정(ICX7150) – eth1/1/1 IP : 192.168.20.12

Router vrrp interface ethernet 1/1/1  ip address 192.168.20.12 255.255.255.0  ip vrrp vrid 1   backup priority 110   advertise backup   ip-address 192.168.20.254   activate

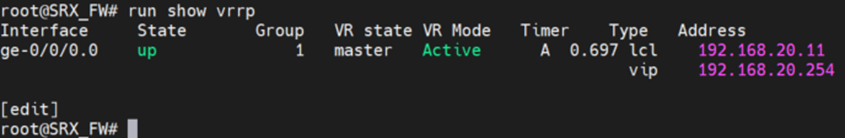

주니퍼 방화벽 결과화면(#run show vrrp)

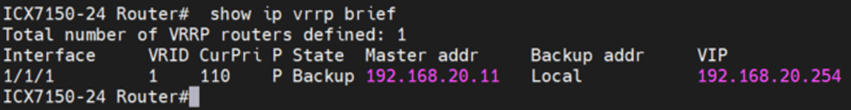

루커스결과화면(#show ip vrrp brief)
